TF BOXBEAM ROLL FORMING MACHINE produce box beam section, it is widely used in the racking system(pallet live racking、cantilever racking、modular shelving、live racking、the racking systems、mobile racking system).
Specification

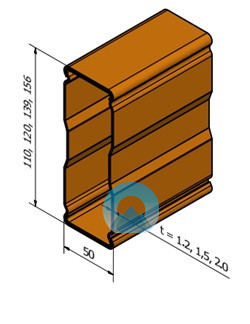

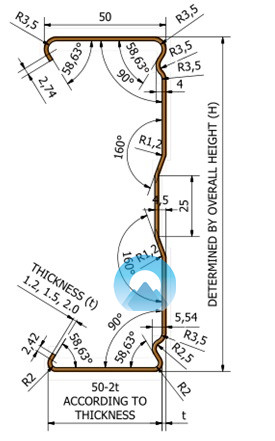

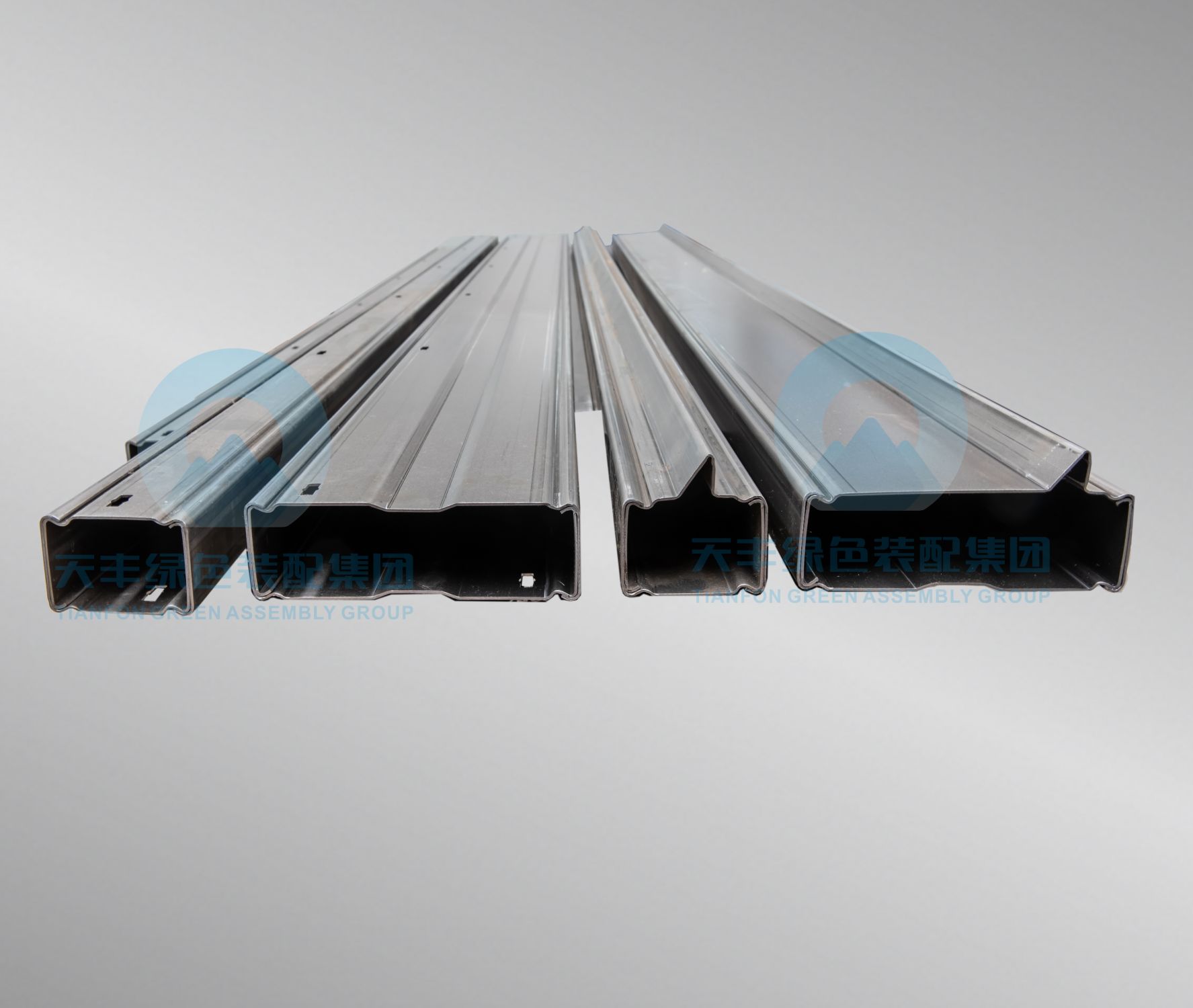

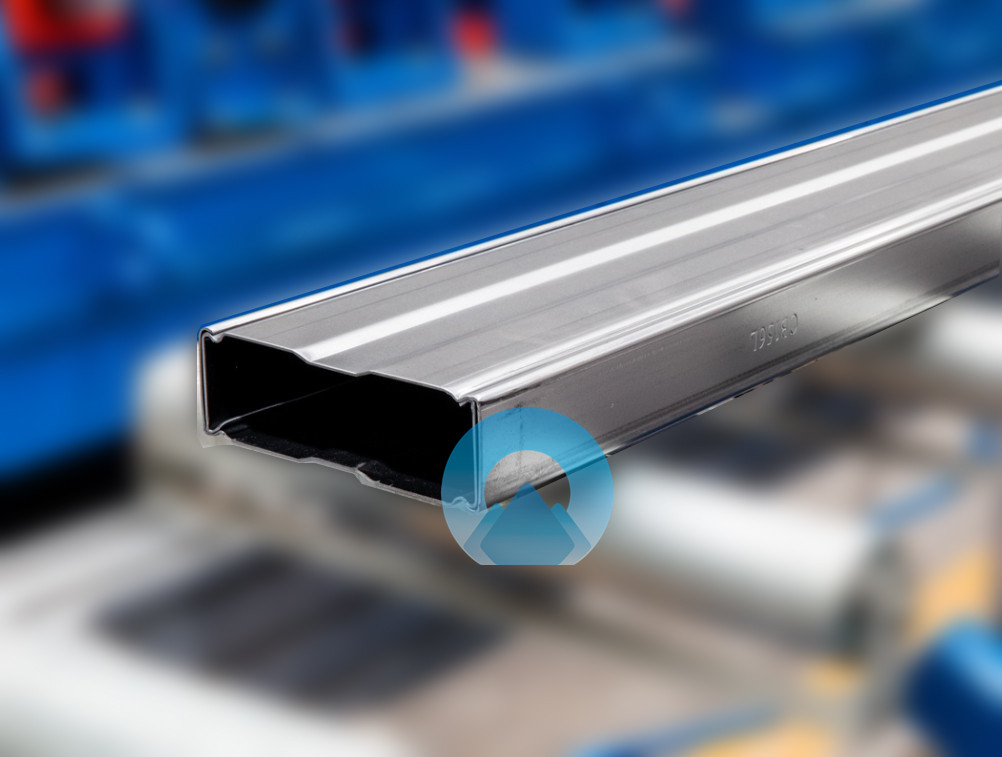

TF BOXBEAM ROLL FORMING MACHINE produce box beam section.The box beam section is safely carried on the front face of the upright where it belongs without ever touching or loading the side of the upright. to match different loading requirment. The roll forming machine can even shape the ribs on the profile discontinuously.

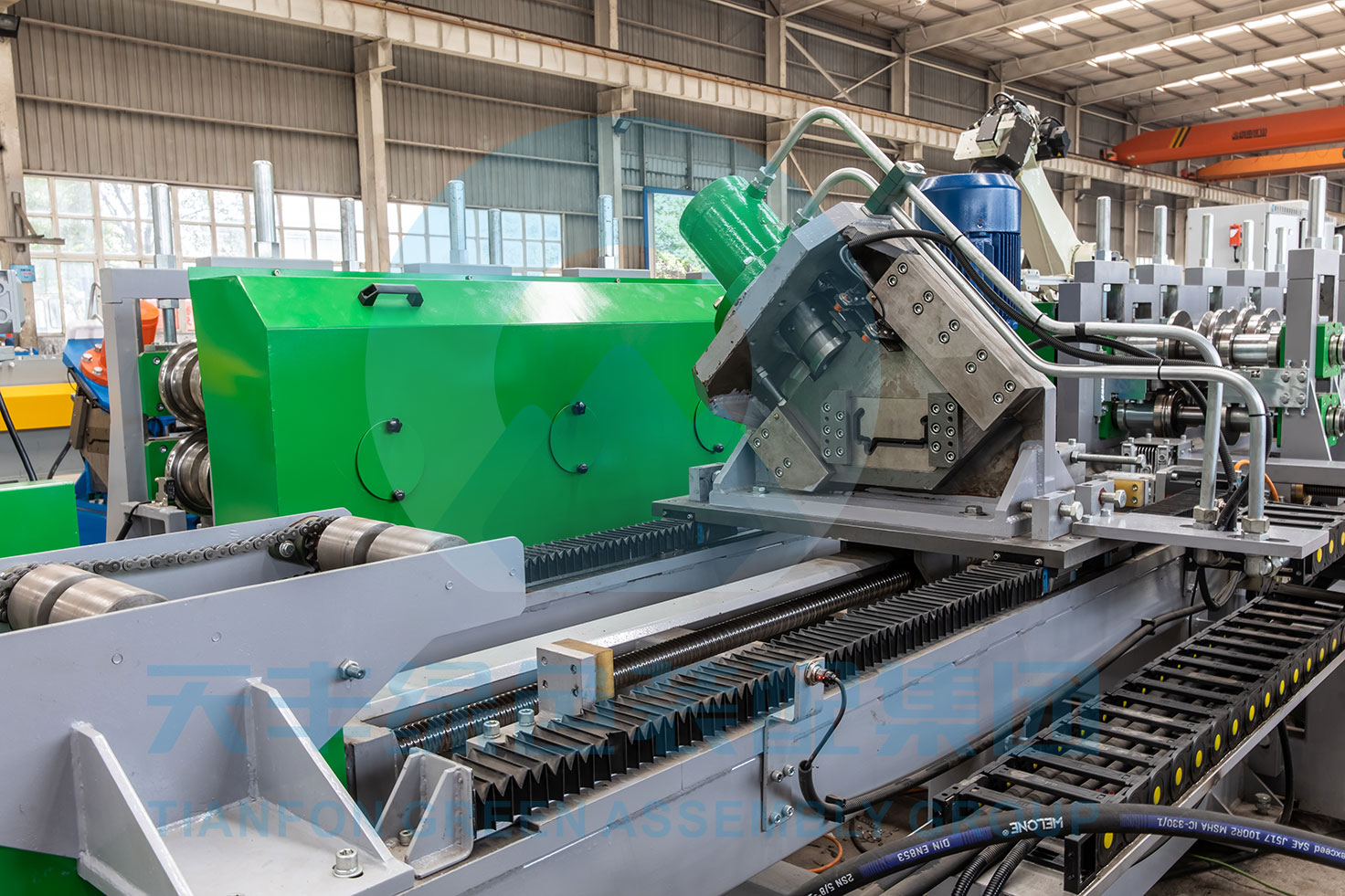

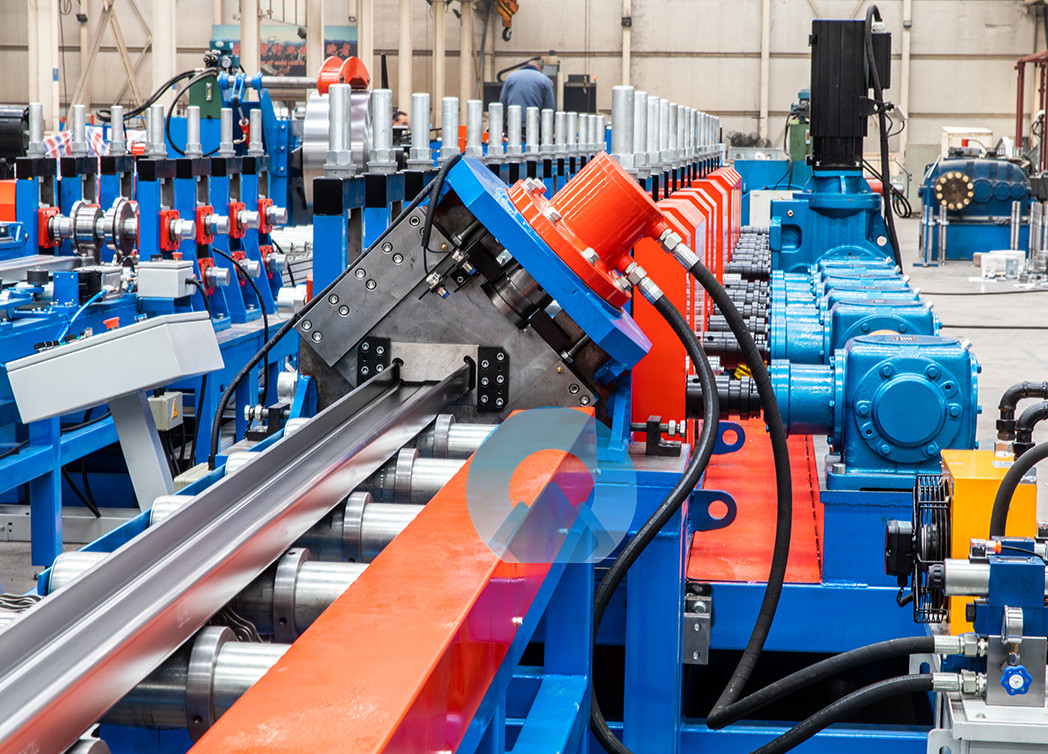

TF BOXBEAM ROLL FORMING MACHINE

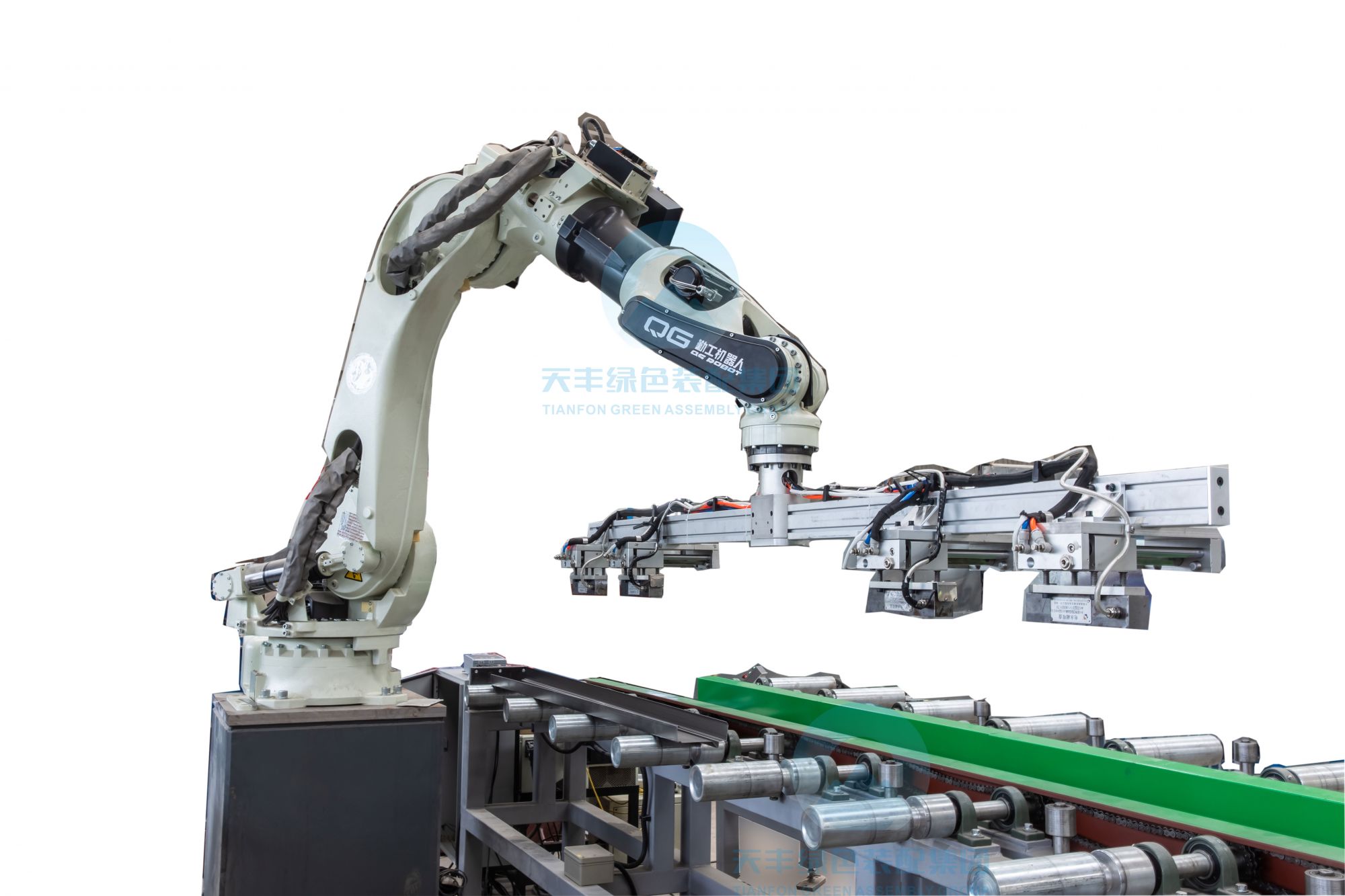

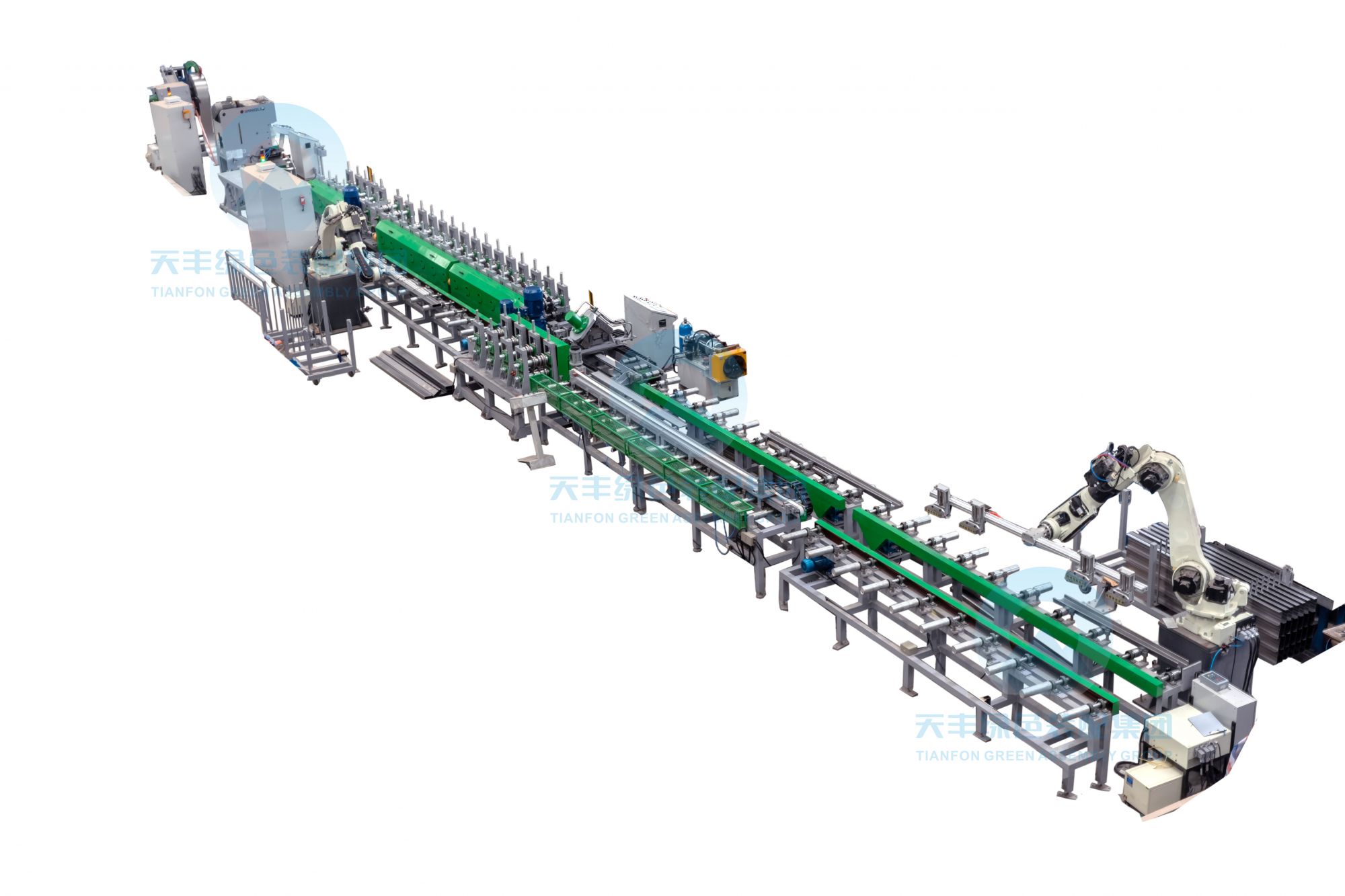

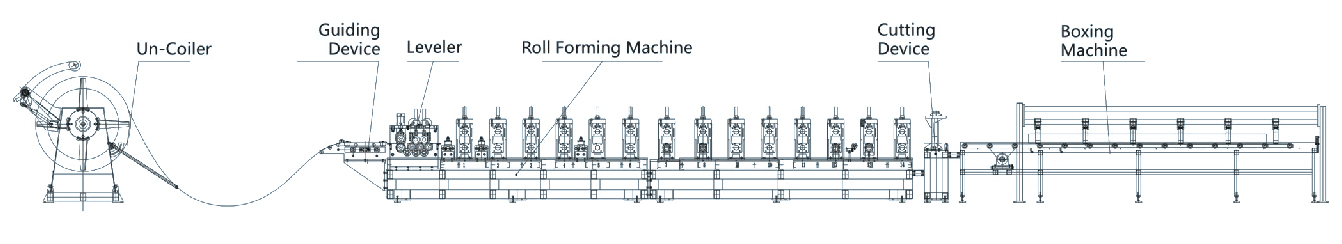

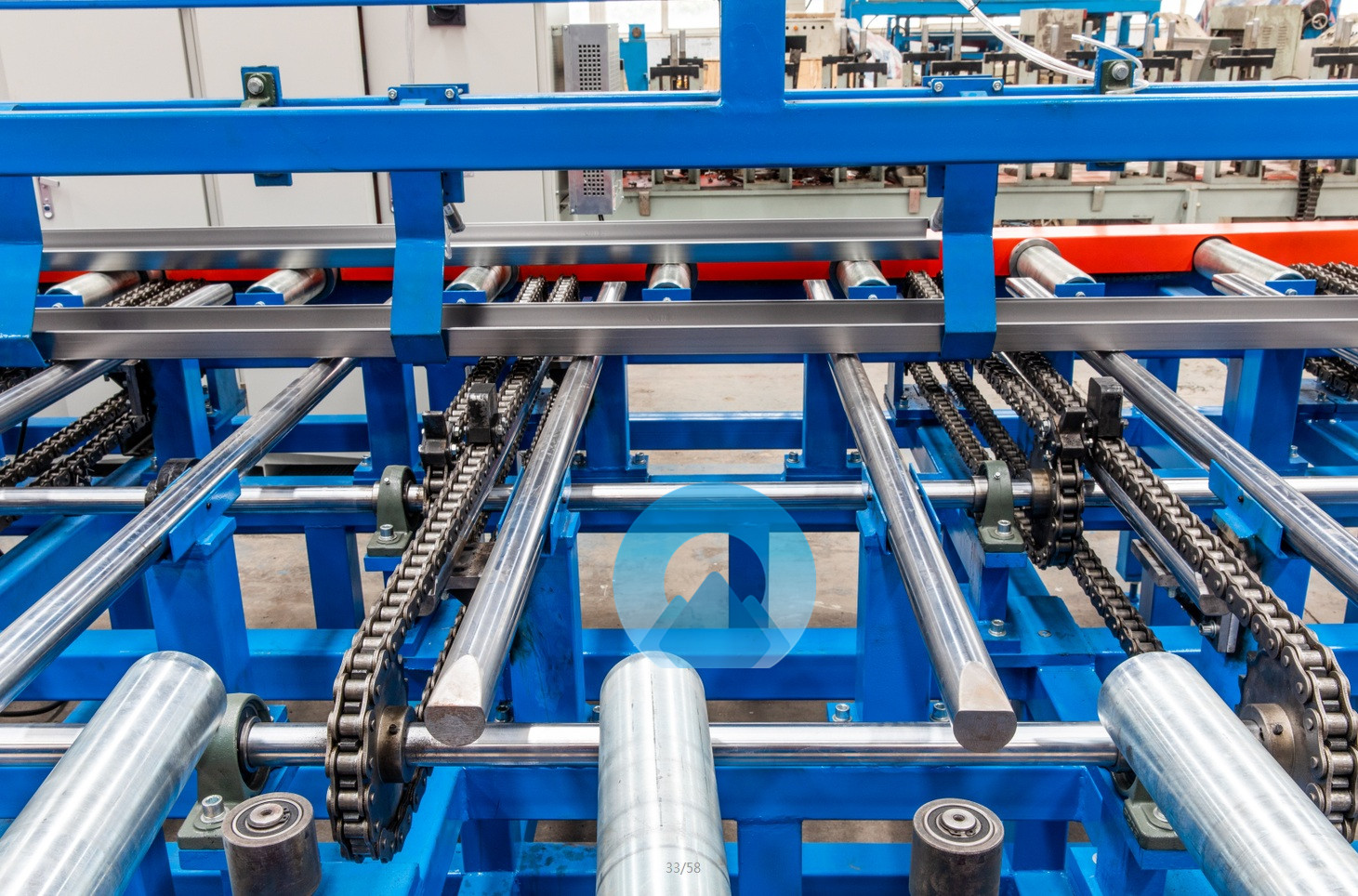

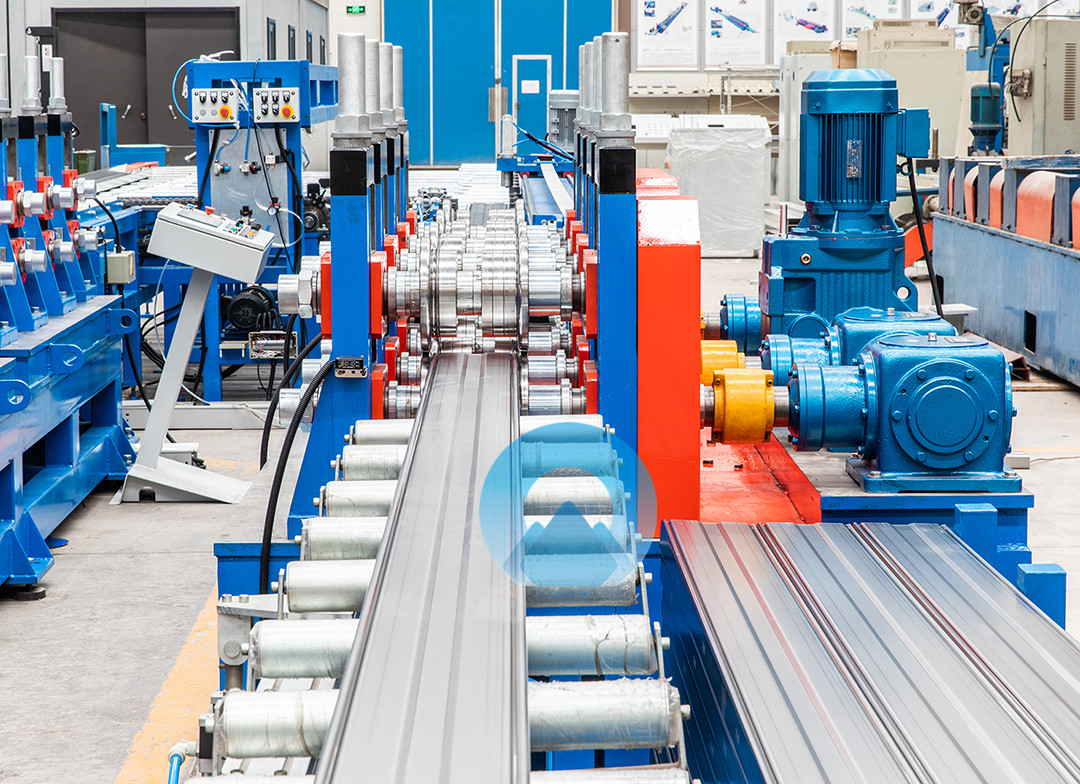

This line with auto flow production functions of Un-Coiler →(cutter and welding for optional)→ Feeding And Guiding →Leveling →Roll Forming → Cutting →Turnover Platform→Boxing →Ran out One operator could run the whole line. Products with high precise, good quality appearance. Machine with stable feature, short production assistance time.
Technical parameters:
| Serial number | Item | Unit | Parameters | Remark | |
| 1 | Suitable material | Type | Q300 cold-rolled steel plate、galvanized plate、color-paint plate 、 stainless steel plate | ||
| strength | MPa | ||||
| Thickness | mm | 1.2mm~2.0mm | |||
| Coil internal diameter | mm | 508mm | |||
| Coil weight | T | 5 | |||
| 2 | Specification | mm | 280--680 | ||
| 3 | Line speed | m/min | 40 | ||
| 4 | Roller material | Cr12, quenching treatment, HRC58-62 | |||
| 5 | Roller driven type | External chain transmission | |||
| 6 | Operating system | Windows2000 | |||
| 7 | Total motor power | Kw | 35 | ||
| 8 | Electric control system | PLC automatic control system | |||
| 9 | Dimension(L*W) | m | 22X3 | ||
