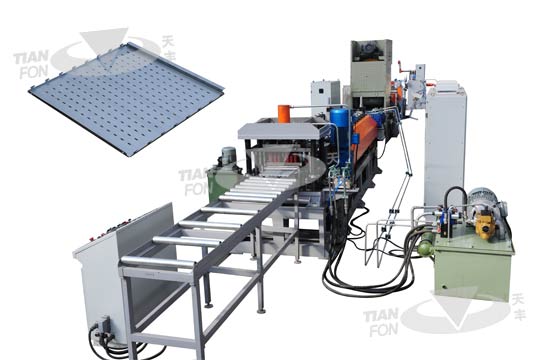

TF automatic shelf panel production line is used to produce box shelf. The width and length of the parts can be set by touch screen parameters, and the stamping module can be selected through digital punching tools automatically. In addition, the parameters of stiffness can be selected and set automatically by forming a machine.
Components
uncoiler、servo feeding device、mechanical press、cantilever roll former、bending& cutting integrated device、centralized lubrication system、hydraulic system and electric control system
Specification
- Equipment overview:
- 1.The rollers’ support is a whole one, all the dimensions is processed by machining centre. The distance (space) between top & bottom rollers is adjusted by eccentric sleeve on the top roller shaft. The lock device ensures stability of the machine. All the bearings on the top & bottom shafts are lubricated. 2.Module torii is installed on NMT, adjust the distance through rotation leader screw.
Technical parameters:
TF Shelf panel roll forming line
| Serial number | Item | Unit | Parameters | Remark | |
| 1 | Suitable material | Type | · Q300 cold-rolled steel plate、galvanized plate、color-paint plate 、 stainless steel plate | ||
| strength | MPa | ||||
| Thickness | mm | 1—2.5mm | |||
| Coil internal diameter | mm | 400mm | |||
| Coil weight | T | 10 | |||
| 2 | Specification | mm | 280--680 | ||
| 3 | Line speed | m/min | 40 | ||
| 4 | Roller material | D2 quenching treatment | |||
| 5 | Roller driven type | External chain transmission | |||
| 6 | Operating system | Windows2000 | |||
| 7 | Total motor power | Kw | 21.5 | ||
| 8 | Electric control system | PLC automatic control system | |||
| 9 | Dimension(L*W*H) | m | 11X1.3X1 | ||
TF Shelf panel section
