Components
Uncoil- leveling –roll forming-cutting –product rack
Specification
- Equipment overview:
- 1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand. The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.
Technical parameters:
| Serial number | Item | Unit | Parameters | Remark | |
| 1 | Suitable material | Type | galvanized steel | ||
| strength | MPa | ≤350 | |||
| Thickness | mm | 2.0-3.0mm | |||
| Coil internal diameter | mm | 500,600 | |||
| Coil weight | T | 5 | |||
| 2 | Specification | mm | 120 | ||
| 3 | Line speed | m/min | 15 | ||
| 4 | Roller material | 45# steel, with hard chrome on surface, polishing | |||
| 5 | Roller driven type | External chain transmission | |||
| 6 | Operating system | Windows2000 | |||
| 7 | Total motor power | Kw | 15 | ||
| 8 | Power supply | PLC automatic control system | |||
| 9 | Dimension(L*W*H) | m | |||
.jpg)

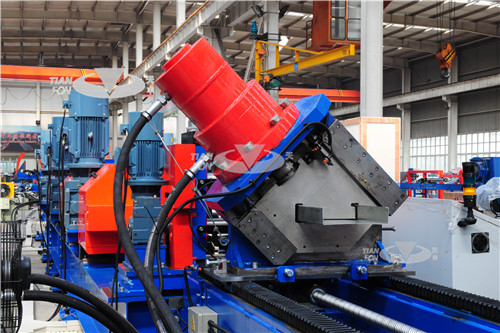

TF CZ Purlin Roll Forming Line
Feeding & leveing Roll forming machine
