Components

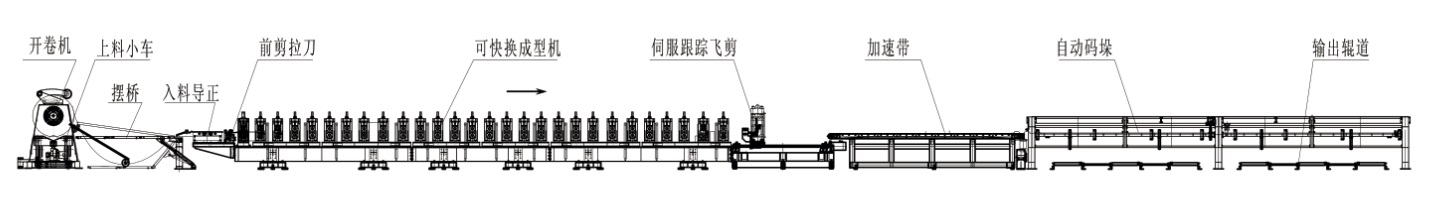

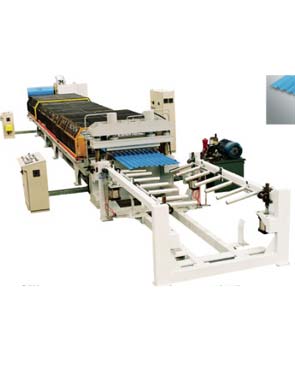

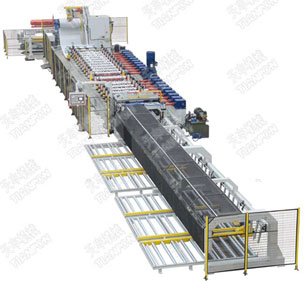

Uncoiling → Feeding guider→ roll forming →cutting → discharging

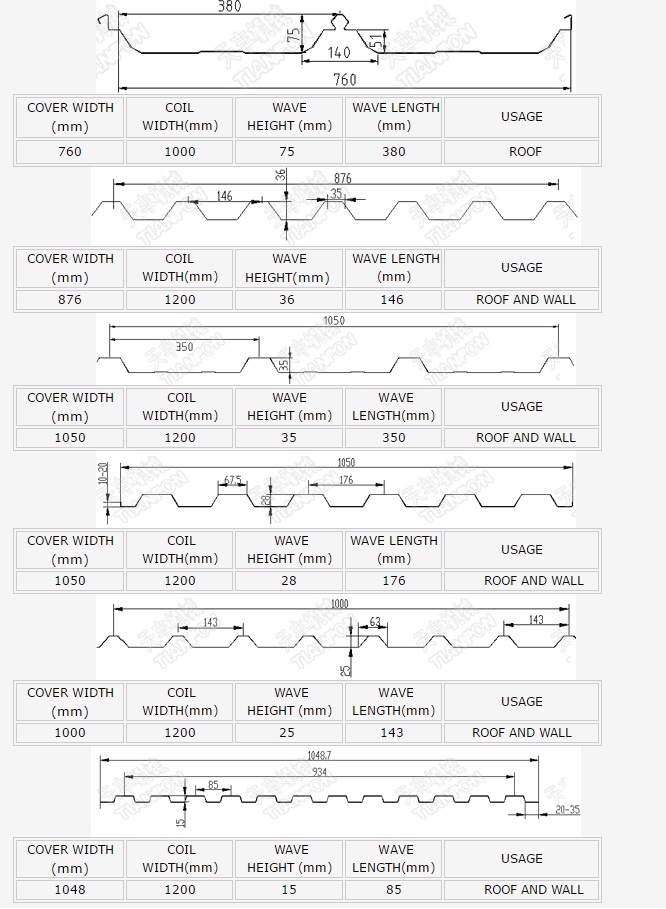

Specification
- Equipment overview:

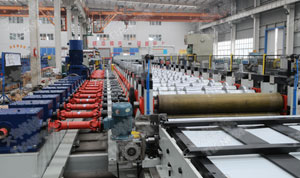

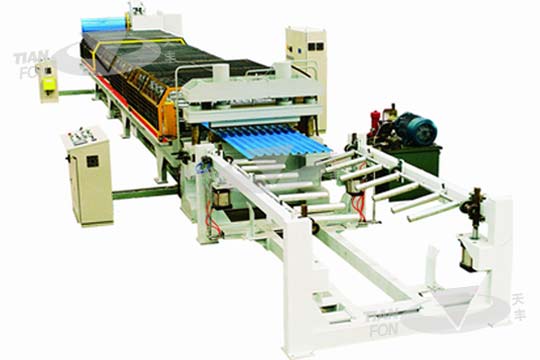

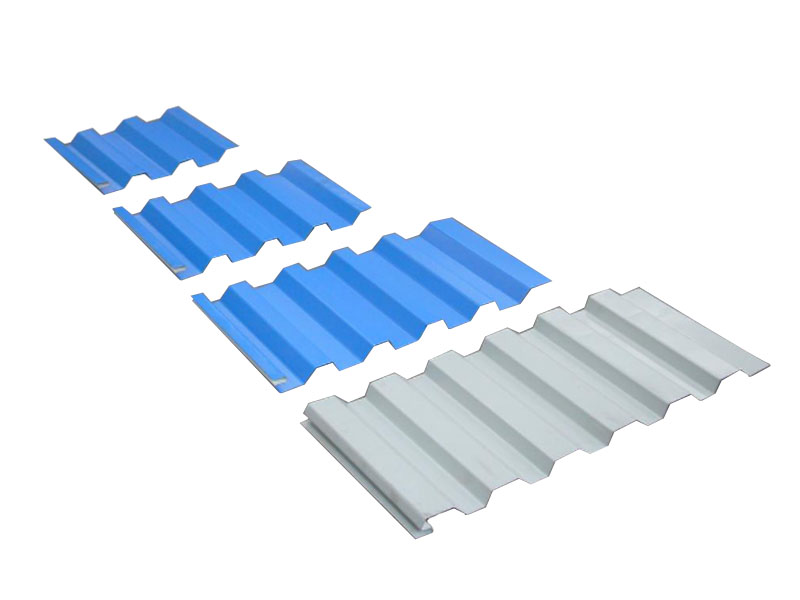

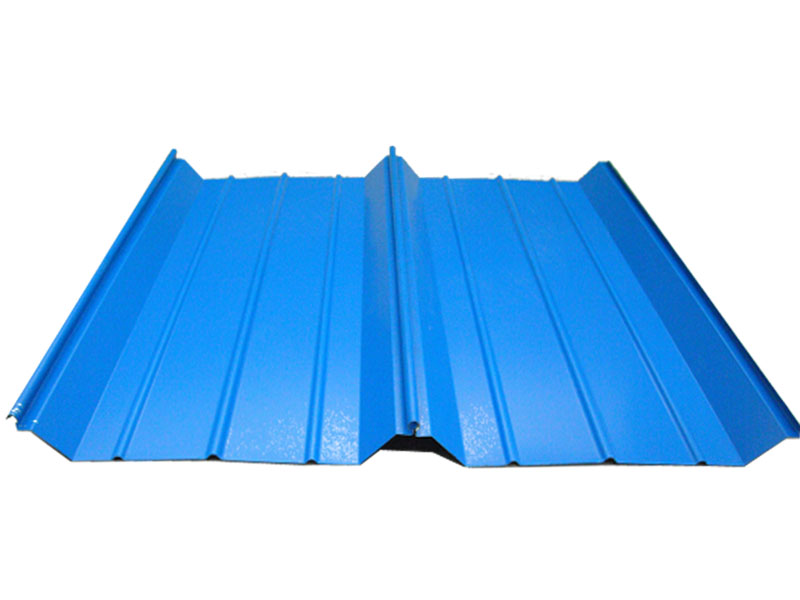

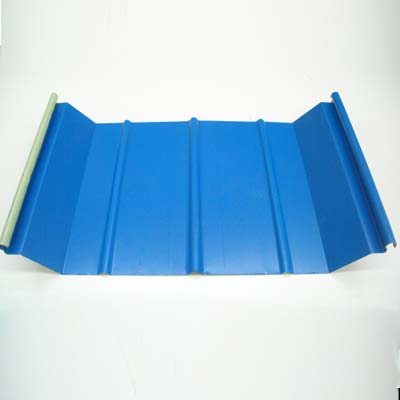

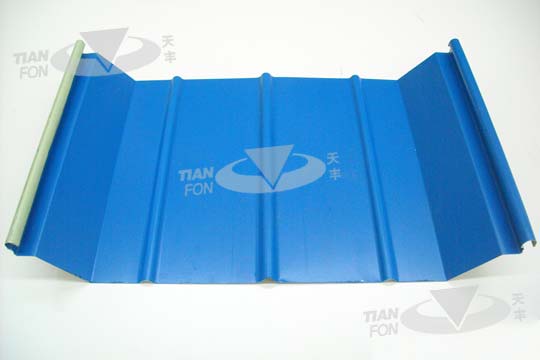

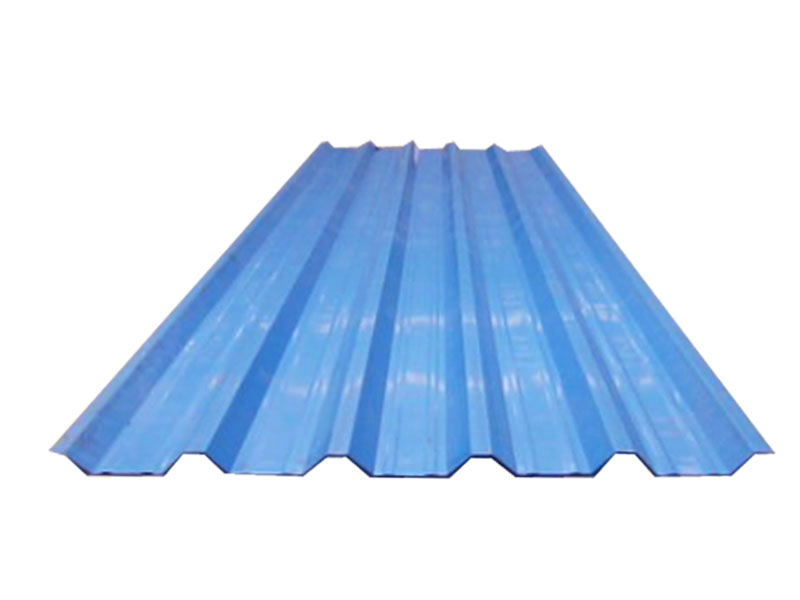

- 1.This kind of cold roll forming machine is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects and containment systems etc.

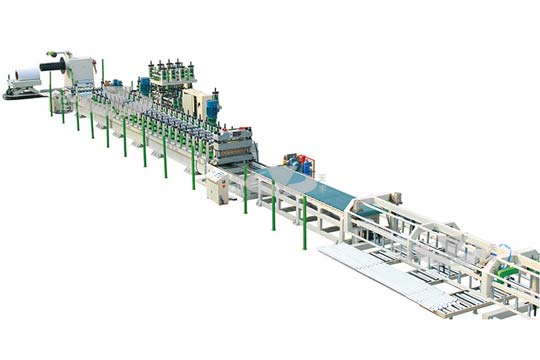

- 2. This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.
- 3. The line speed of this panel forming machine is 40m/min.
Technical parameters:
| Serial number |
Item |
Unit |
Parameters |
Remark |
|
1 |
Suitable material |
Type |
galvanized steel |
||
| strength |
MPa |
≤350 |
|||
| Thickness |
mm |
2.0-3.0mm |
|||
| Coil internal diameter |
mm |
500,600 |
|||
| Coil weight |
T |
5 |

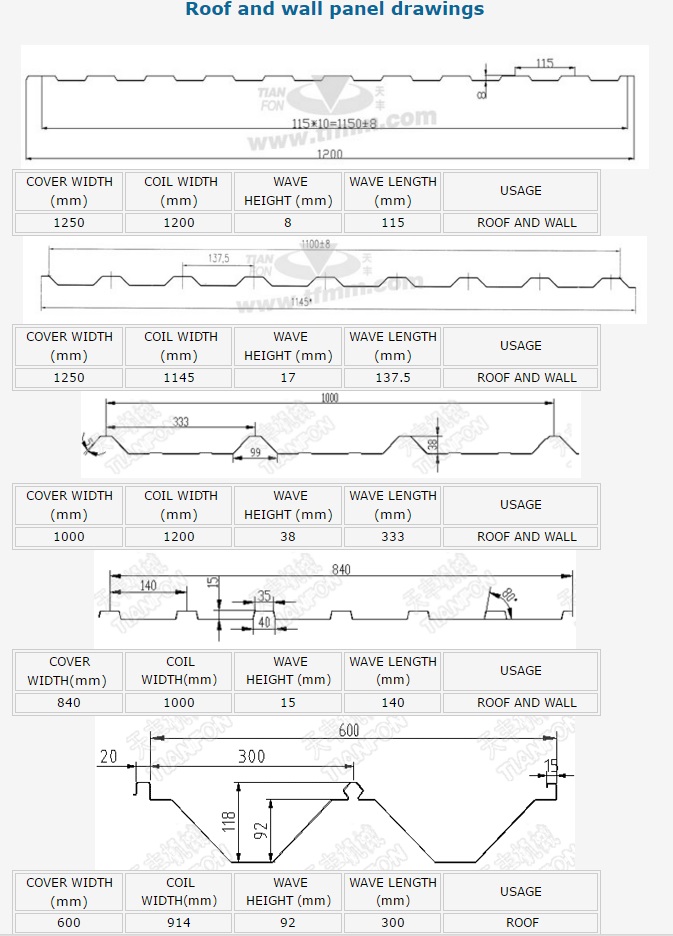

|||
| 2 |
Specification |
mm |
120 |
||
| 3 |
Line speed |
m/min |
15 |
||
| 4 |
Roller material |
45# steel, with hard chrome on surface, polishing |
|||
| 5 |
Roller driven type |
External chain transmission |
|||
| 6 |
Operating system |
Windows2000 |
|||
| 7 |
Total motor power |
Kw |
15 |
||
| 8 |
Power supply |
PLC automatic control system |
|||
| 9 |
Dimension(L*W*H) |
m |
|||

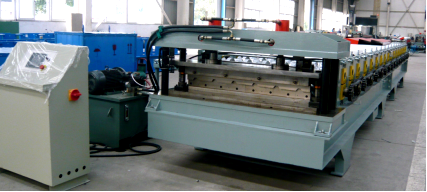

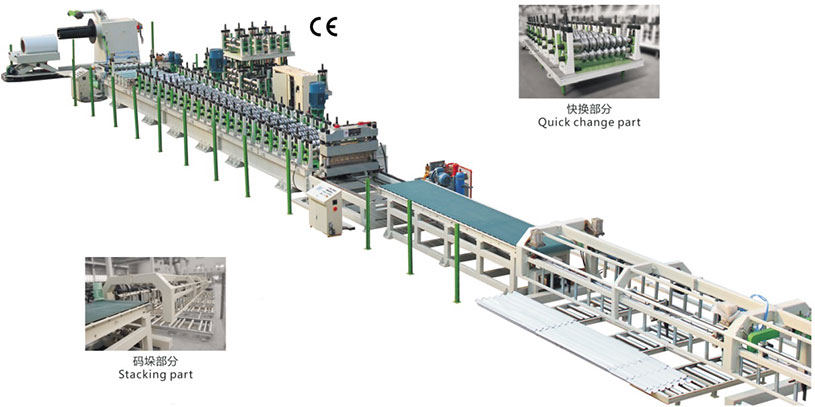

TF 45/50 quick-change-raft roll forming machine

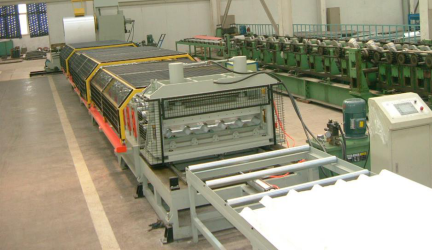

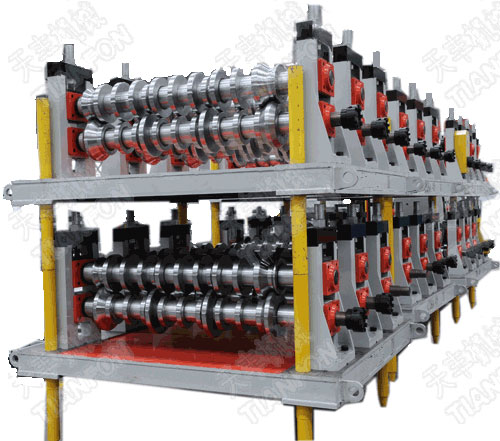

TF 45/50 quick-change-cassettes
