Components

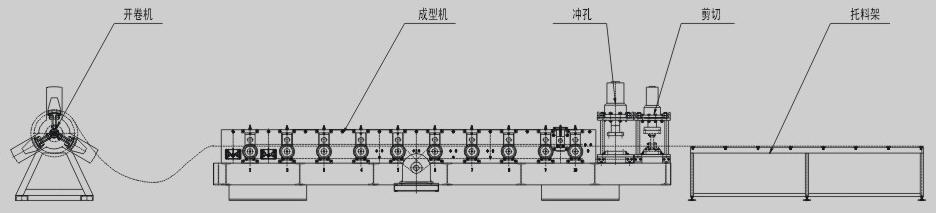

Manual Decoiler ---- Feeding Guide ---- Roll Forming ---- Length Measuring --- Hydraulic Cutting ---Runout table
.jpg)
.jpg)
Specification
TF gutter roll forming line with auto flow production functions of uncoiling, leveling, roll forming and track cutting etc, perfectly achieve the joint of roll forming , cutting. One operator could run the whole line. Products with high precise, good quality appearance. Machine with stable feature, short production assistance time, production efficient could reach 15m/min.





Technical parameters:
Serial number | Item | Unit | Parameters | Remark | |
1 |
Suitable material |
Type | Q235, galvanized sheet Prepainted coil | ||
strength | MPa | ≤235 | |||
Thickness | mm | 0.4mm~0.8mm | |||
Coil internal diameter | mm | 500 | |||
Coil weight | T | 3 | |||
2 | Specification | mm | Φ500~Φ600mm | ||
3 | Line speed | m/min | 10 | ||
4 | Roller material | GCr15 | |||
5 | Roller driven type | External chain transmission | |||
6 | Operating system | Windows2000 | |||
7 | Total motor power | Kw | About 3 | ||
8 | Electric control system | PLC automatic control system | |||
9 | Dimension(L*W*H) |
