Components
Manual Decoiler- Guiding Device-- Roll Forming M/C-- Saw Cutting-- PLC Control System-- Run-out Table--- Safety Barrier
Specification

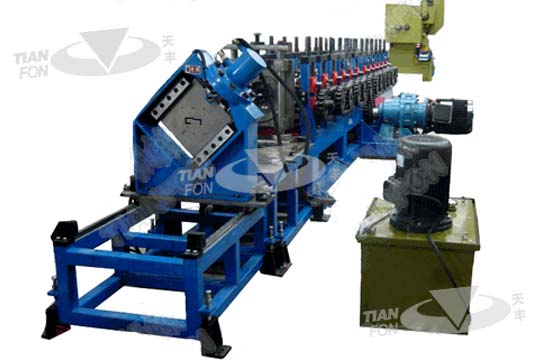

- Equipment overview:
- The roll forming profile products which processed by electrical cabinet roll forming line of our company, widely used in the following fields, such as electrical cabinet and control cabinet column of electrical machinery industry and metallurgy machinery industry, the electrical cabinet sections of paper machinery industry and machine tools industry, AC&DC control cabinet and electrical cabinet sections of spinning and chemical fiber machinery industry, mining and building machinery industry, also high or medium-voltage electrical transmission control cabinet sections of telecommunications industry.
Technical parameters:
| Serial number |
Item |
Unit |
Parameters |
Remark |
|
1 |
Suitable material |
Type |
cold rolled steel coils(Q235) |
||
| strength |
MPa |
≤350 |
|||
| Thickness |
mm |
3.0 |
|||
| Coil internal diameter |
mm |
80 |
|||
| Coil weight |
T |
3 |
|||
| 2 |
Specification |
mm |
53--66 |
||
| 3 |
Line speed |
m/min |
25 |
||
| 4 |
Roller material |
D2 quenching treatment |
|||
| 5 |
Roller driven type |
External chain transmission |
|||
| 6 |
Operating system |
Windows2000 |
|||
| 7 |
Total motor power |
Kw |
380V/50HZ |
||
| 8 |
Electric control system |
PLC automatic control system |
|||
| 9 |
Dimension(L*W*H) |
m |
|||
