Components
Un-coil----roll forming----saw cutting----outlet finished product
Specification
- Equipment overview:
- The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The structure of the rollers is combined, so the line speed difference and resisting force of roll forming is small. The sheet is easy to feed. All these assure the accuracy and stable of the roll forming.
Technical parameters:

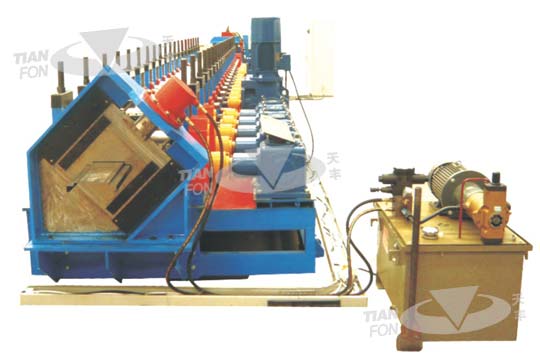

TF Steel Door Frame Roll Forming Line
| Serial number | Item | Unit | Parameters | Remark | |
1 |
Suitable material |
Type | Q235 | ||
| strength | MPa | ≤350 | |||
| Thickness | mm | 1.5-2.0 | |||
| Coil internal diameter | mm | 508 | |||
| Coil weight | T | 3 | |||
| 2 | Specification | mm | 205 | ||
| 3 | Line speed | m/min | 0-15 | ||
| 4 | Roller material | GCr15,HRC58-62 | |||
| 5 | Roller driven type | ||||
| 6 | Operating system | ||||
| 7 | Total motor power | Kw | |||
| 8 | Electric control system | PLC automatic control system | |||
| 9 | Dimension(L*W*H) | Mm | |||

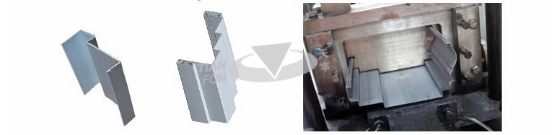

Cutter part

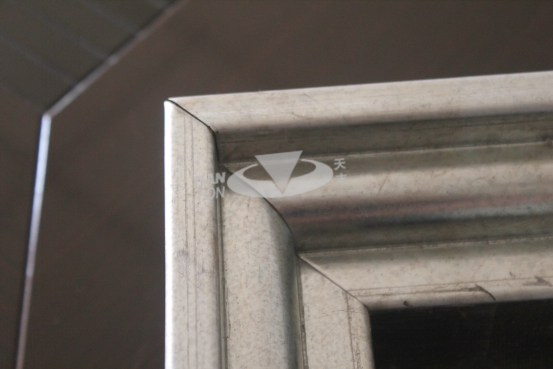

Door frame
Door frame
