Components
Uncoiler- guider-servo leveler feeding device-hydraulic punch and cutting device-moving support device -roll forming machine -notching device-quick adjust cutting device-run out table
Specification
Poultry feeding trough roll forming line is used for feeding cage sections roll form of large feeding plant,touch screen sets arbitrary length,the whole line allocated small space.
Un-coil level feed line consists of brand new equipments. Each part is manufactured by good material. Allocated machine, hydraulic, electric components and control system are advanced, quality, reliable products.
Un-coil level feed line consists of brand new equipments. Each part is manufactured by good material. Allocated machine, hydraulic, electric components and control system are advanced, quality, reliable products.
Each unit runs stable& reliable, with durable service life, operation and maintenance convenient. Line could continuous stable run for 24 hours under below work environment.
(1).jpg)

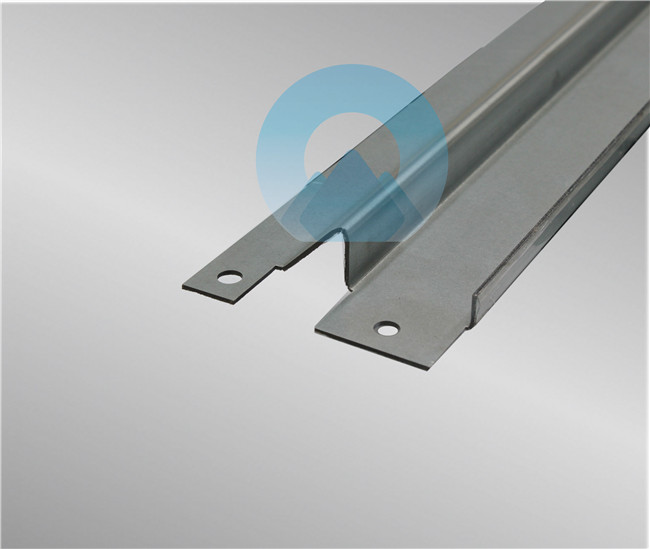

Poultry feeding trough roll forming line
Technical parameters:
| Serial number | Item | Unit | Parameters | Remark | |
1 |
Suitable material |
Type | galvanized coil | ||
| strength | MPa | ≤235 | |||
| Thickness | mm |
|
|||
| Coil internal diameter | mm
|
||||
| Coil weight | T | 5T
|
|||
| 2 | Specification | mm | 165 | ||
| 3 | Line speed | m/min | 20 | ||
| 4 | Roller material | GCr15 | |||
| 5 | Roller driven type | External chain transmission | |||
| 6 | Operating system | Windows2000 | |||
| 7 | Total motor power | Kw | About 11 | ||
| 8 | Electric control system | PLC automatic control system | |||
| 9 | Dimension(L*W*H) | m | |||
